The MAX Audio Processor For Amateur Radio, LPAM, And Podcasting

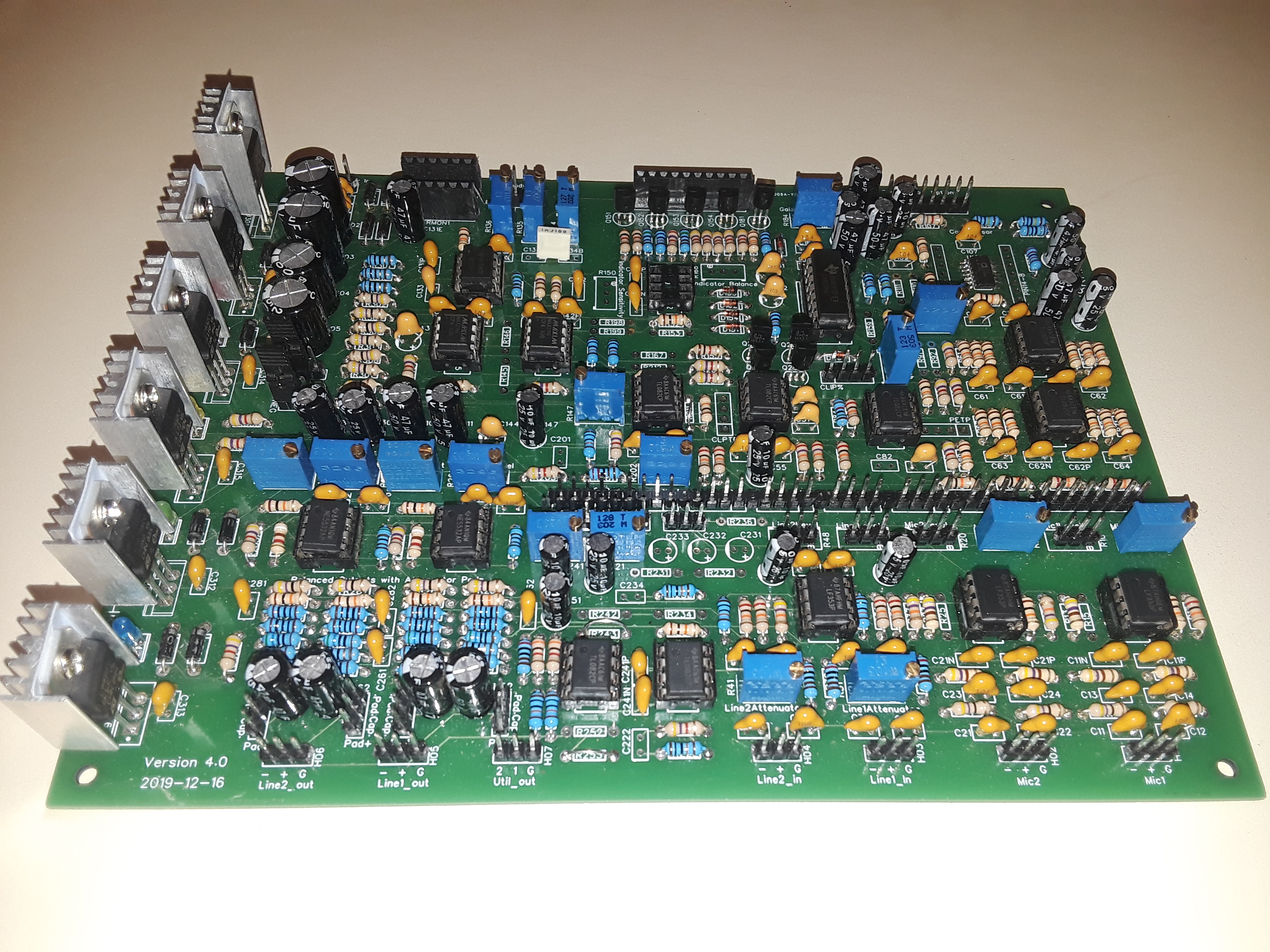

Revision Date: 200416 Information contained on these web pages copyright W8KHK / N1BCG. Amateur or individual use is encouraged. Commercial use of any kind is prohibited without the express written permission of the author, Richard A. Maxwell MAX Audio Processor - Version 3.0 Limited Supply Remains - PC Board Only... No Parts Kits MAX Audio Processor - Version 4.0 Current Version - Available MAX Audio Processor - Version 5.0 Under Development - Available Soon

MAX Audio Processor - General Description The MAX Audio Processor is a simple yet full-featured audio processor for amateur radio and Part 15 low power AM (LPAM) operators who want loud and clean audio with absolute bandwidth control. The design is the result of a collaboration between amateur radio operators and broadcast engineers and includes all the key components of sophisticated audio processors. Individually selectable features include compression, limiting, clipping, phase-rotation, high and low pass filters, plus a constantly variable bandwidth filter. Users can connect power, input, and output and get great audio with the default settings. For advanced users or those looking for a specific sound, the modular layout of the MAX Audio Processor enables each section to be bypassed or controlled separately by adding external switches, resistors, or potentiometers, resulting in a fully customizable sound adjustable on the fly.
