The MAX Audio Processor For Amateur Radio, LPAM, And Podcasting

Revision Date: 200417 v3 Information contained on these web pages copyright W8KHK / N1BCG. Amateur or individual use is encouraged. Commercial use of any kind is prohibited without the express written permission of the author, Richard A. Maxwell MAX Audio Processor - General Description The MAX Audio Processor is a simple yet full-featured audio processor for amateur radio and Part 15 low power AM (LPAM) operators who want loud and clean audio with absolute bandwidth control. The design is the result of a collaboration between amateur radio operators and broadcast engineers and includes all the key components of sophisticated audio processors. Individually selectable features include compression, limiting, clipping, phase-rotation, high and low pass filters, plus a constantly variable bandwidth filter. Users can connect power, input, and output and get great audio with the default settings. For advanced users or those looking for a specific sound, the modular layout of the MAX Audio Processor enables each section to be bypassed or controlled separately by adding external switches, resistors, or potentiometers, resulting in a fully customizable sound adjustable on the fly.

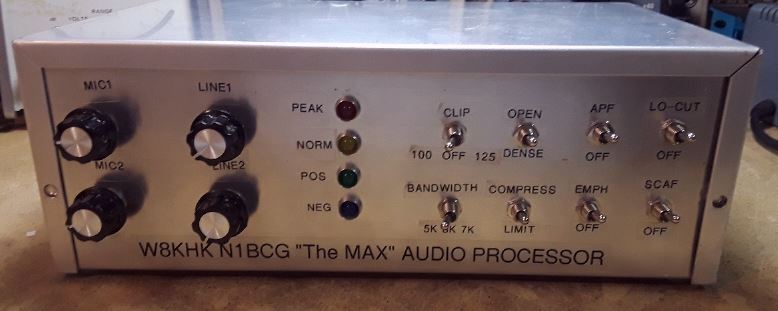

MAX Audio Processor - Connections, Controls, And Indicators Four inputs provide users with the ability to connect a wide range of Hi-Z, Lo-Z, balanced, unbalanced microphones, and line level equipment. The gain for each input can be independently set using internal trimmers. Hum pickup is minimized by the use of an external analog power supply. The basic model of the MAX Audio Processor features an input control and two LEDs that show normal (yellow) and peak (red) levels. An additional pair of LEDs indicate whether the polarity of the incoming waveform is predominanty positive (green) or negative (blue). This is useful for those who want to check the performance of their microphone(s). The MAX Audio Processor includes comprehansive waveform processing to ensure loud and clean audio at all times. This is accomplished with a combination of asymmetry control, presence frequency enhancement, average audio maximization, and peak control. Users can tailor the sound instantly to suit preference or band conditions with the "Open/Dense" switch or add optional controls for maximum flexibility. See the Customizations section for details. The heart of the MAX Audio Processor is the dual section precision SCAF (Switched CApacitor Filter) bandwidth limiting circuit. The three default switch-selectable sharp cutoff frequencies are 3kHz, 5kHz, and 7kHz (6kHz, 10kHz, and 14kHz bandwidth) although users can adjust any or all three using the internal trim pots. This allows instant selection of transmitted bandwidth to suit changing conditions. Alternatively, users can add an external potentiometer for continuous frequency response/bandwidth control. See the Customizations section for details. Two internally adjustable gain outputs can be configured for balanced or unbalanced line level (0 to +4dBu) or microphone level (-50dBu) to drive virtually any type of transmitter. An additional internally adjustable gain utility output is provided for connection to a VU meter or headphones if desired.

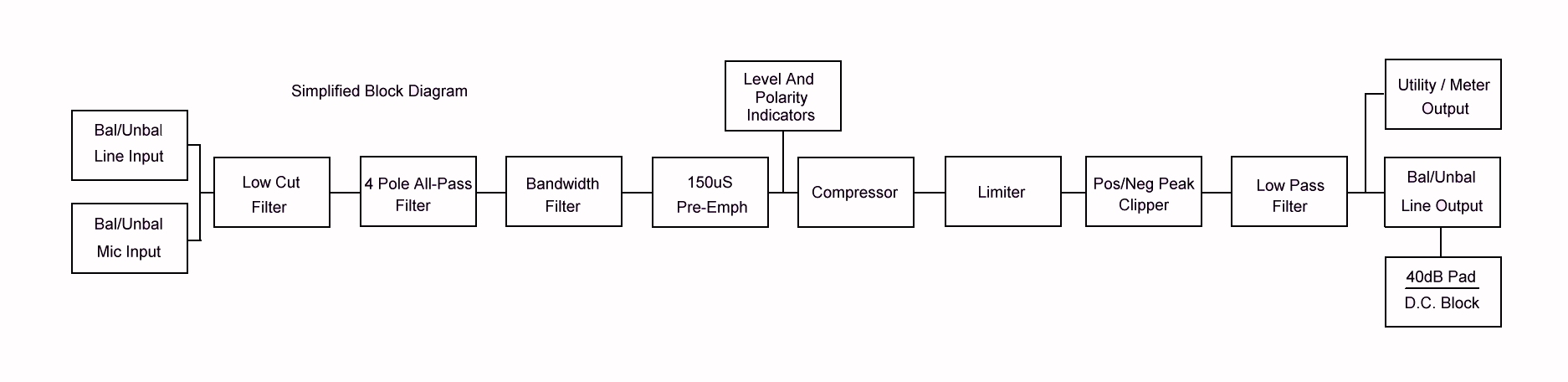

Max Audio Processor - Circuit Description Mic Level Inputs - Two discrete microphone pre-amplifiers may be used to connect microphones of low and high impedance, balanced, D-104, and powered mics (phantom & electret), etc Note that while microphones requiring “phantom” power may be used with the MAX Audio Processor, there is no 45 volt supply included in the design. An external phantom interface device is recommended in this case. The builder assumes full responsibility for any microphone damage, should the processor be altered to provide direct phantom power. Line Level Inputs - Two separate balanced or unbalanced line inputs are provided to interface to other audio gear or receiver output for aircheck activities. Low Cut Filter - Also known as a "high pass filter" this circuit attenuates frequencies below the communications vocal range. Background noise such as rumble or vibrations from amplifier fans and power supplies are significantly reduced with this feaure enabled. It has the added benefit of enhancing clarity when the MAX Audio Processor is set for narrow bandwidths by allowing the important 300-3000 Hz vocal range to be emphasized. All Pass Filter/Phase Rotator - This function has been a part of every broadcast audio processor since the 1980s due to its ability to increase average modulation levels without changing gain. Compressors reduce gain based on the higher of either positive or negative peaks so asymmetrical waveforms, common with speech, cause unnecessary gain reduction. By rotating the polarity of the incoming signal throughout its frequency range, the overall waveform becomes more symmetric, resulting in less gain reduction (louder audio). The circuit is referred to as an all pass filter because it is acoustically transparent unless the speaker is wearing headphones. In this case, the effect can be heard since the path of audio to the ears through the jaw and from the headphones will be neither in nor out of phase. Pre-Emphasis - This R/C circuit uses a 150uS time constant and approximately 12dB of boost in the important vocal range. It is enabled by default to counteract the inherant loss of higher frequencies by narrow bandwidth receivers and to improve the signal to noise ratio in the 2-5 kHz presence range. The 150uS curve was chosen for its effectiveness in voice communication over the 3 to 7 kHz range of the MAX processor. Compressor - The compressor section is designed to provide effective transmitted audio control. User selectable settings range from a mellow "open" sound for casual conversations during good band conditions (default) to a significantly aggressive mode for challenging conditions and contesting. Even this setting maintains enough dynamic range to preserve "sonic cues" that aid in intelligibility. The compressor function can also be disabled for use in noisy operating areas. Noise Gate - A basic noise gate circuit is set to reduce gain when the input to the MAX processor drops below a preset level. The threshold was chosen to have a minimal effect and typically acts only on low level noise. Users who want to operate with a VOX can raise the threshold by adding a resistor at the terminals included for this purpose. Limiter - The high ratio (15:1) limiter is part of the same chip that provides compression so the two function well together. Its main function is to tightly control the amount of drive to the clipping section to ensure maximum modulation without the distortion that results from overdriving clippers. Clipper - The clipper significantly increases the amount of transmitted audio by eliminating the peaks that add nothing to perceived loudness. With these unecessary peaks clipped off, average modulation levels can be increased noticably before reaching -100% (AM), triggering an ALC cutback (SSB), or reaching maximum deviation limits (FM). This clipper circuit features absolute -100% peak control and a user selectable +100% (all modes) or +125% (AM only) peak control. While it is possible to defeat the positive peak clipper, doing so poses a very high risk of damage to modulation transformers and RF components due to exceeding component breakdown voltages. The clipper circuit is defaulted on for this reason. SCAF Adjustable Bandwidth Filter - Setting the presets using a general coverage receiver, tone oscillator and VU meter, MAX295 vs MAX296, etc. Line Level Outputs - Two discrete line-level outputs provide balanced or unbalanced low-impedance interconnection to two transmitters. Either one may be high level, or low-level with the 40dB pad, and may be AC or DC coupled, as needed. Utility Output - This output is single-ended, and may be used to drive a VU meter, headphones, a third transmitter, or any other desired external device.
